Diaphragm Metering Pump ELADOS® EMP IV

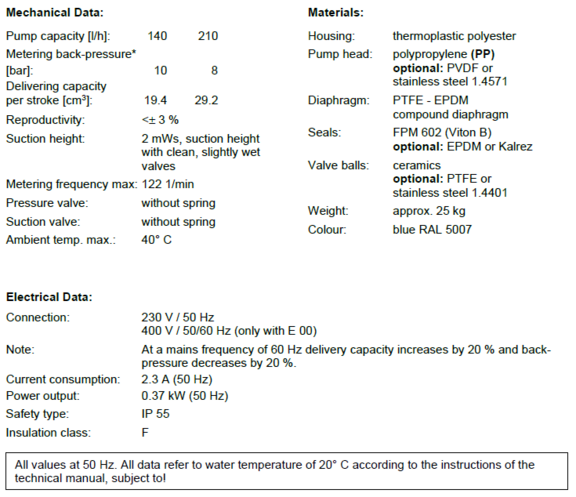

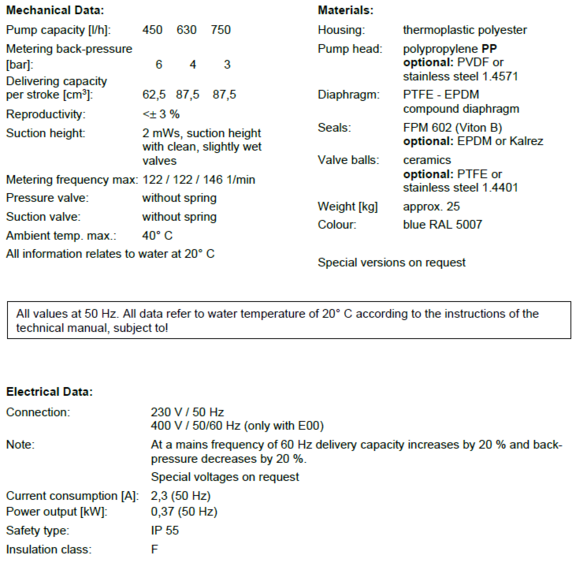

Metering Capacity: 140 - 750 l/h
electronically controlled
single phase motor with winding protection
- PP plastic material for pump head and valves, standard
- Plastic external housing, metal internal housing
- High delivery capacity at low number of strokes
- Mechanical stroke adjustment
- Empty signal report and level pre-warning
- Empty signal and stroke signal output
- Pulse control
- Stroke frequency regulation
- Standard signal drive
- External metering stop
- Single stroke control
The ELADOS® EMP IV series of metering pumps is based on the building block principle. Devices of this series comprise the drive unit, the gear, the metering pump head and the electronics.
Different electronic control variants guarantee that the pump may be adapted to any processing sequence for proportional or quantity metering.
The scope of delivery is rounded off by practical accessories, so forming a complete range of equipment for all metering applications.
417101090_EMP_IV_E00_E10.pdf
Operating instructions EMP IV E00/E107 MB417101799_EMP_IV_E60.pdf
Operating instructions EMP IV E607 MBEMP4-210_Catalog.pdf
Catalog EMP IV up to 210 l/h439 KBEMP4-750_Catalog.pdf
Catalog EMP IV up to 750 l/h327 KBEMP4-210_Spare-parts.pdf
Spare parts EMP IV up to 210 l/h467 KBEMP4-750_Spare-parts.pdf
Spare parts EMP IV up to 750 l/h496 KBEMP4-210_Accessories.pdf
Accessories EMP IV up to 210 l/h353 KBEMP4-750_Accessories.pdf
Accessories EMP IV up to 750 l/h350 KB
